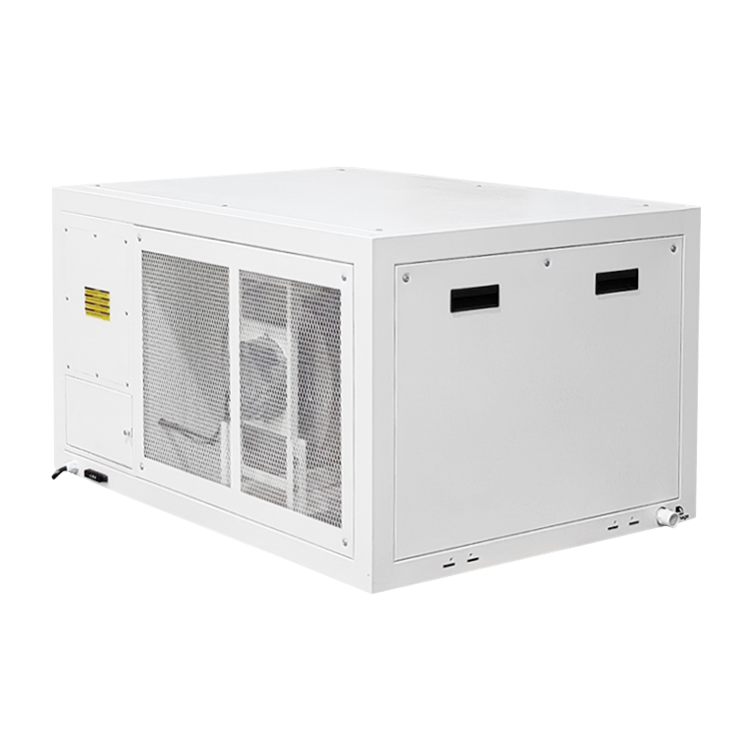

Why IDSDD-350p
Optional 24V dry contact can be added. ( IDSDD-160, IDSDD-230P, IDSDD-350P, IDSDD-500P, IDSDD-710P,IDSDD-870P)
| Model number | IDSDD-350P |
| Dehumidify capacity (27 ℃ 60%RH) | 350Pint/D (165L/D) |
| Supply voltage | 220-240V/50Hz/60Hz |
| Power consumption | 2.2kW |
| Current draw | 10.1A |
| Circulating air flow | 2000m3/h |
| Humidity control range | 40%-95% |
| Working temperature range | 5~38°C |
| Drainage | Hose connection |
| Refrigerant | Eco-friendly R410a |
| Noise | ≤65dB |
| Net weight | 231 lbs/ 105 kgs |
| Gross Weight | 312 lbs/ 142 kgs |
| Dimension(L*W*H) | 1100*820*605mm |
| Packaging | 1160*900*775mm |
Working Principle
The principle of the dehumidifier is-to discharge theair vapor-cooled self-condensing liquid through daocooling,reduce the air humidity,and achieve thedehumidification effect. The working principle is topass the compressor dao,two devices (evaporator,condenser)，capillary tube,and The refrigerant in thecopper pipe changes from a high-temperature andhigh-pressure gas to a low-temperature and low-pressure liquid.The air inhaled into the machine has alarge temperature difference, which quickly condenseswater droplets and slides into the drain box throughthe two fins to reduce the air humidity and achievethe effect of dehumidifcation.
Installation
The dehumidifier should be installed in a place with air circulation, and avoid placing it in dead corners, causing short circuits in the air flow and failing to achieve the required dehumidification effect. At the same time, the dehumidifier should be placed on a firm and flat floor to avoid vibration and noise. Also, avoid direct sunlight or close to heating appliances.
