Features
- High efficiency / energy saving / less power consumption without failure
- Automatic restart on and off with memory function
- Continuously drainage in 24 hours by tube
- High precision humidity control with ±3%RH, ambient humidity controlled ＞RH45% based on temp
- Compressor with 3 minutes delay – starting protection
- Auot-defrosting function
- High and Low pressure protection
- Malfunction display Error code timely
- Easy operation and simple installation on ceilin
Why DJDD-1381E

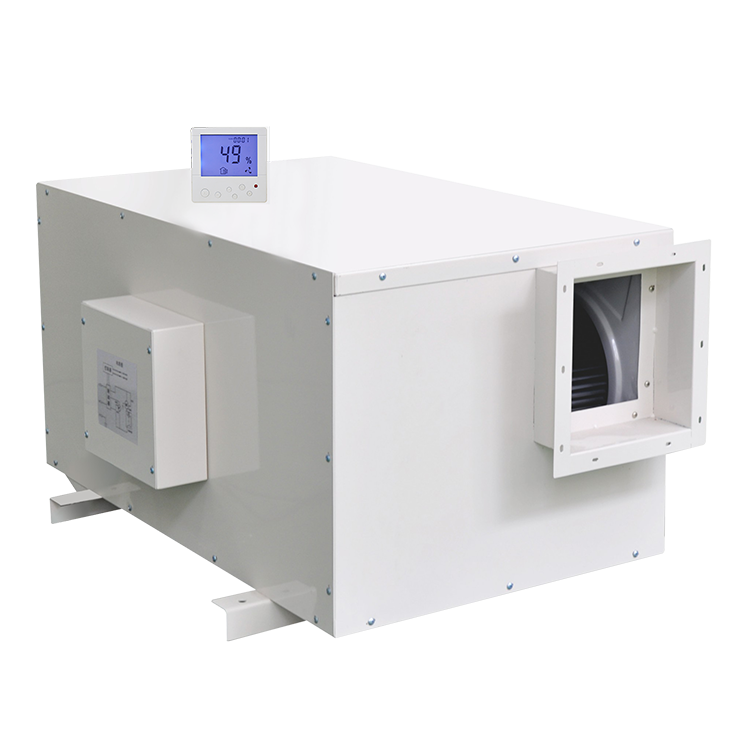

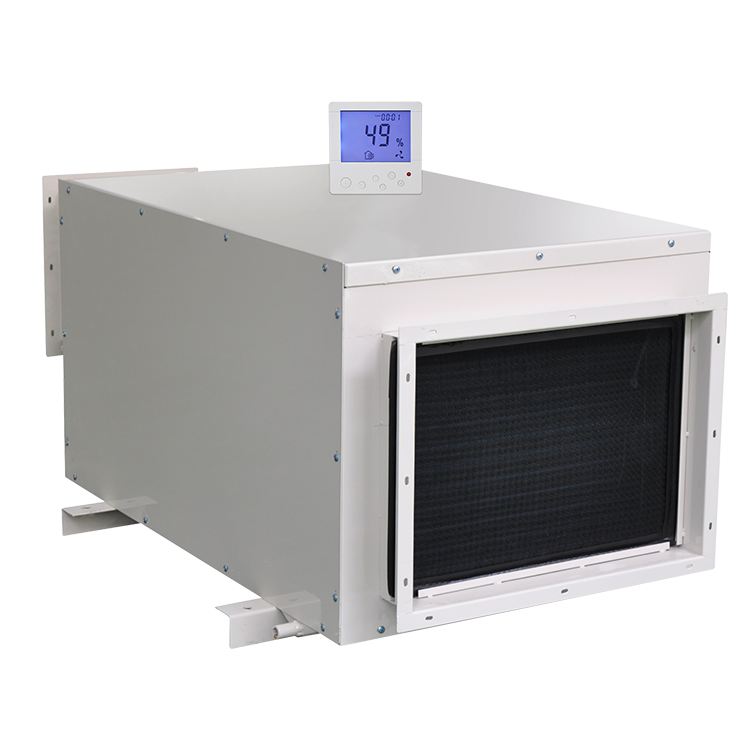

Industrial ducted dehumidifier is designed for some special application room, machine can be installed outside room, and connect to air inelt and air outlet by ducting pipe. It will be idea solution to save limited space in the application room.
| Model number | DJDD-1381E |
| Nominal dehumidification（27℃，RH60%） | 138L/day |
| Power supply | 220V/50Hz |
| Rated input power | 1.5KW |
| Rated input current | 7A |
| Circulating air flow | 1000m³/h |
| Humidity control range | 40%-95% |
| Drainage way | Hose connection |
| Working temperature range | 5~38°C |
| Refrigerant | R407c/R410a |
| Noise | ≤50db |
| Compressor type | Rotary |
| Warranty | 1 Year |
| Standard packaging | Wooden case |
| Certification | CE |
| Net weight/Gross weight | 56kg/71.5kg |
| Machine size | 625x940x472 mm |
| Package size | 665x965x610 mm |
Working Principle
The principle of the dehumidifier is-to discharge theair vapor-cooled self-condensing liquid through daocooling,reduce the air humidity,and achieve thedehumidification effect. The working principle is topass the compressor dao,two devices (evaporator,condenser)，capillary tube,and The refrigerant in thecopper pipe changes from a high-temperature andhigh-pressure gas to a low-temperature and low-pressure liquid.The air inhaled into the machine has alarge temperature difference, which quickly condenseswater droplets and slides into the drain box throughthe two fins to reduce the air humidity and achievethe effect of dehumidifcation.
Installation
The dehumidifier should be installed in a place with air circulation, and avoid placing it in dead corners, causing short circuits in the air flow and failing to achieve the required dehumidification effect. At the same time, the dehumidifier should be placed on a firm and flat floor to avoid vibration and noise. Also, avoid direct sunlight or close to heating appliances.
